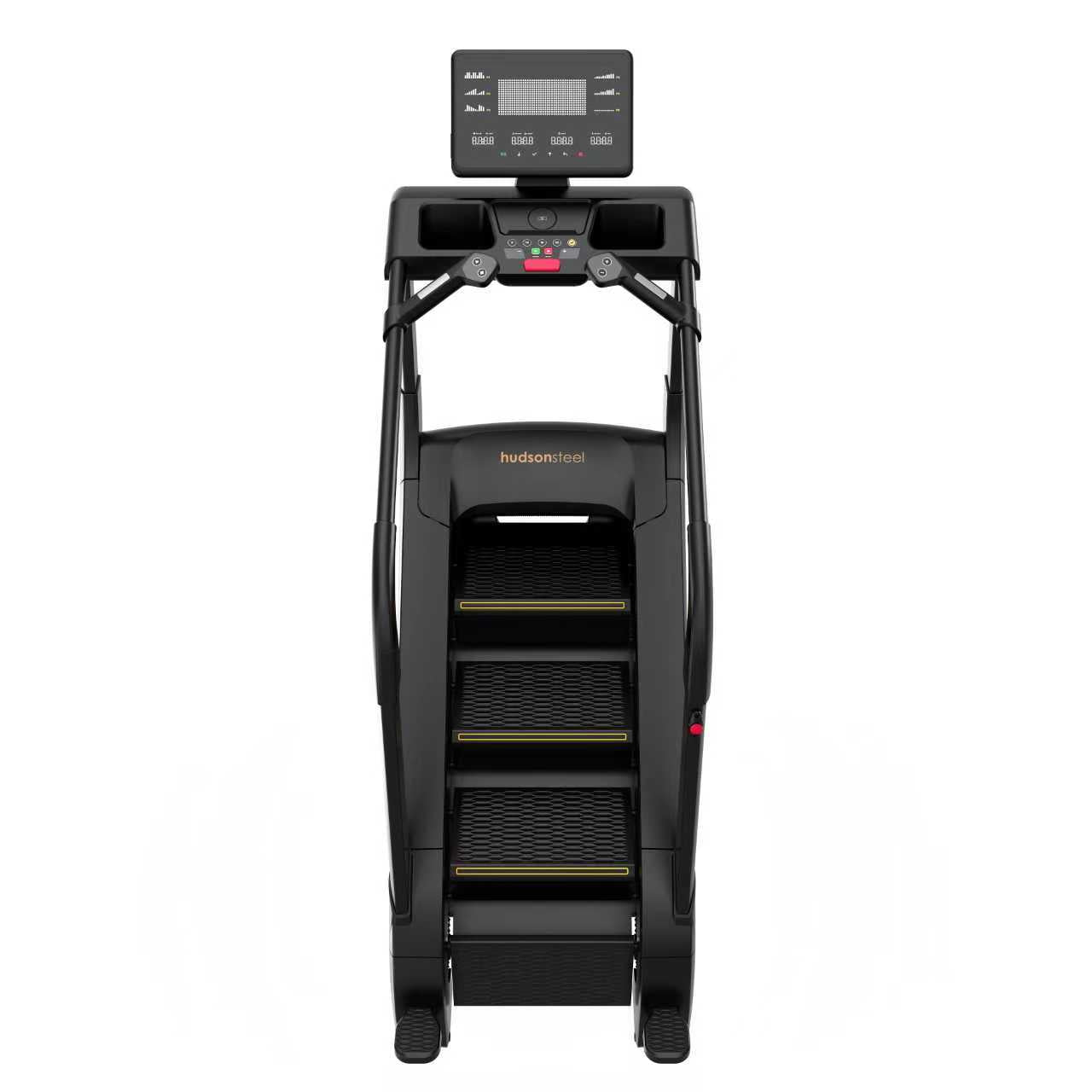

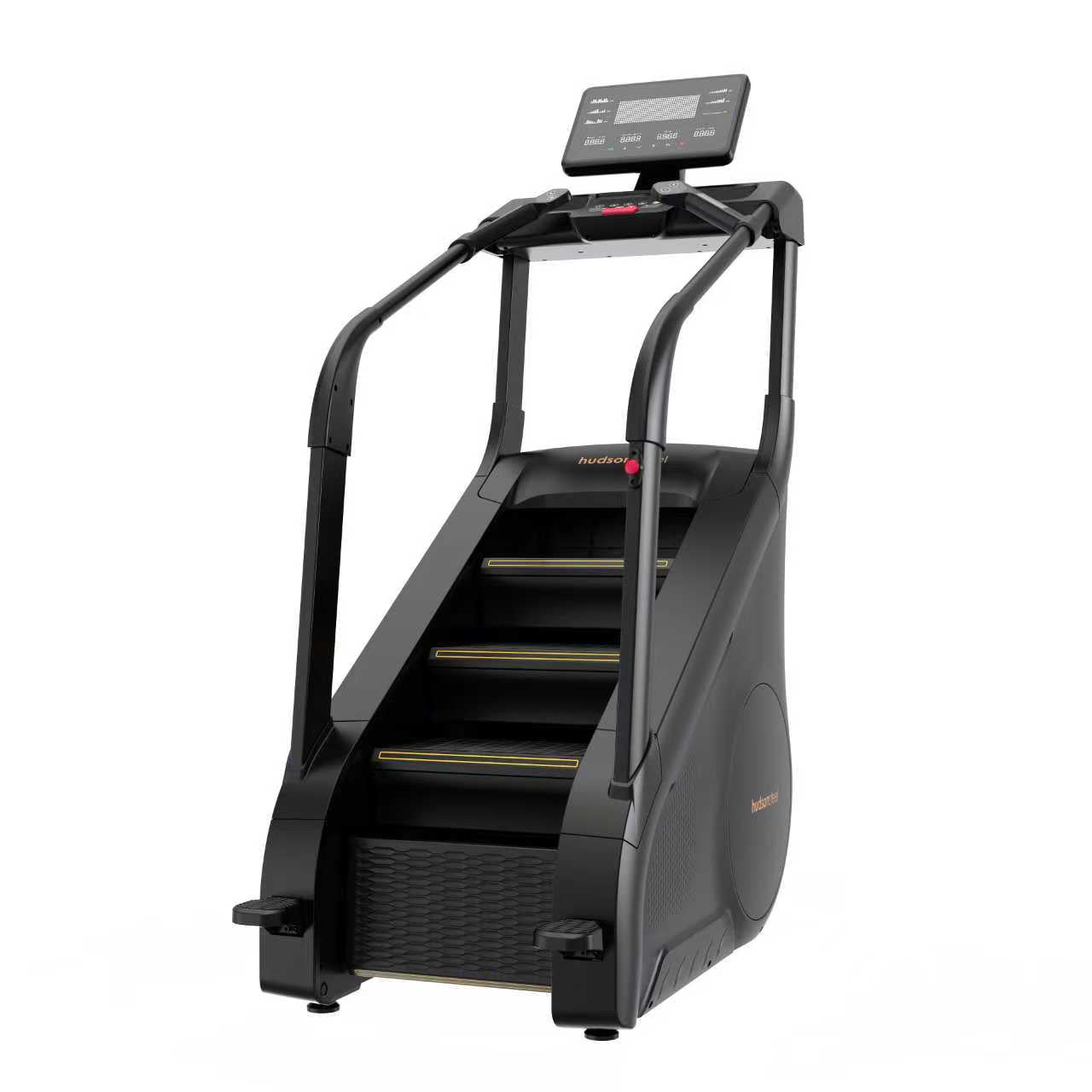

Hudson Steel New Yorker

✅ Advanced Dual EMS Magnetic Resistance System

Built with dual EMS electromagnetic resistance, delivering smooth, quiet, and consistent power output without friction or noise. Combined with 25 adjustable speed levels and a cadence range of 20-164 steps per minute, it lets you fully customize intensity for any workout goal, from beginner cardio to advanced endurance training.

✅ Highly Realistic Stair Climbing Experience

Features a total of 7 steps with 3 effective climbing steps, simulating authentic stair climbing motion to engage your glutes, quads, hamstrings, and core muscles simultaneously.

✅ Smart & Functional Workout Console

Equipped with a 15.6-inch adjustable LED display for easy workout tracking. Integrated with hand-grip heart rate monitoring and wireless charging, you can monitor your heart rate in real time and keep your devices powered up while exercising.

✅ Comprehensive 7-Level Safety Configuration

Built with a 4-color safety breathing indicator light, water-resistant and sweat-wicking design, and ergonomic support. These features ensure you stay safe, dry, and visible throughout your workout, even during high-intensity sessions.

✅ Compact, All-In-One Design for Home Use

The integrated one-piece structure requires no complex assembly and fits easily into small apartments, living rooms, or home gyms. It’s a space-efficient, low-maintenance cardio solution for consistent daily training.

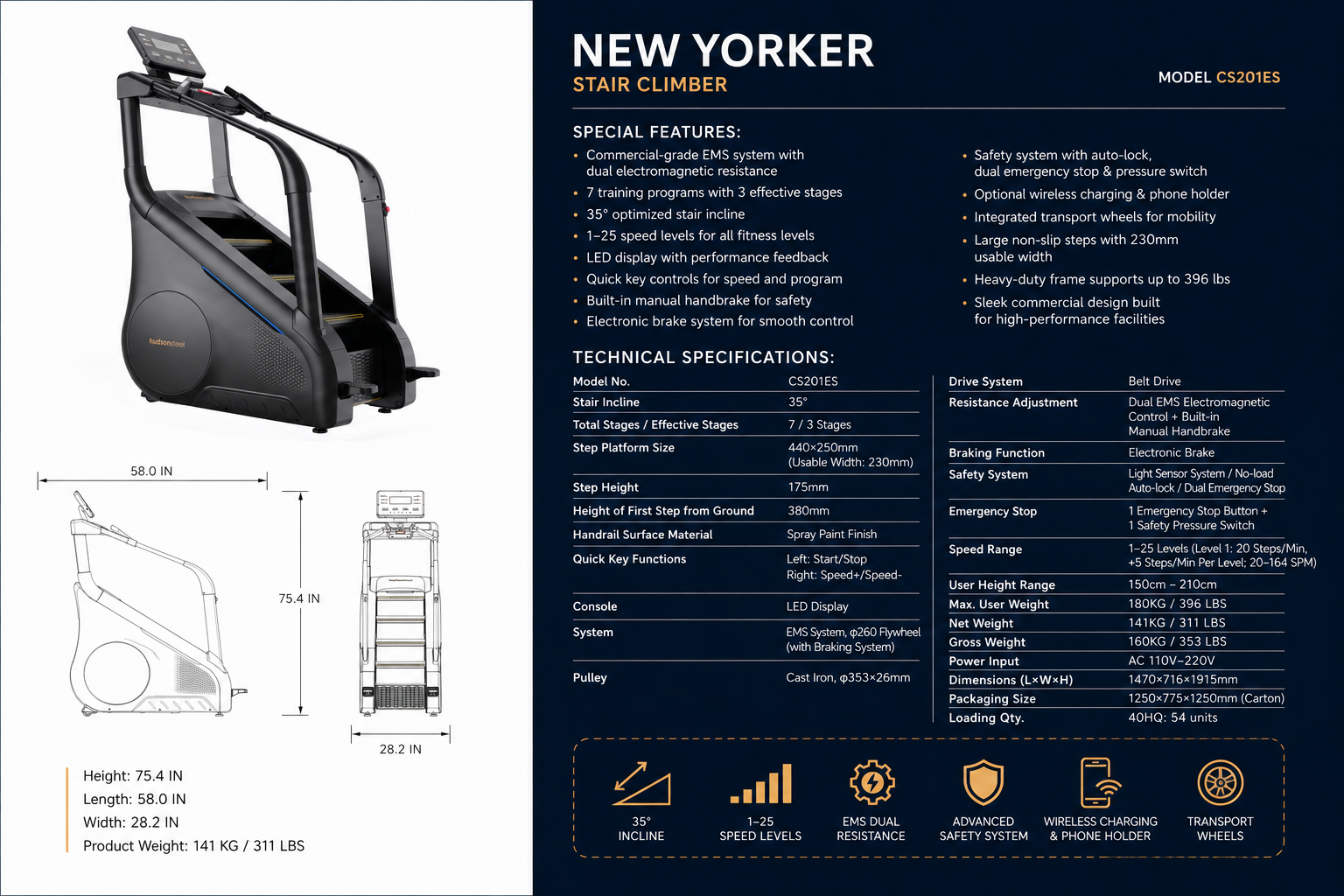

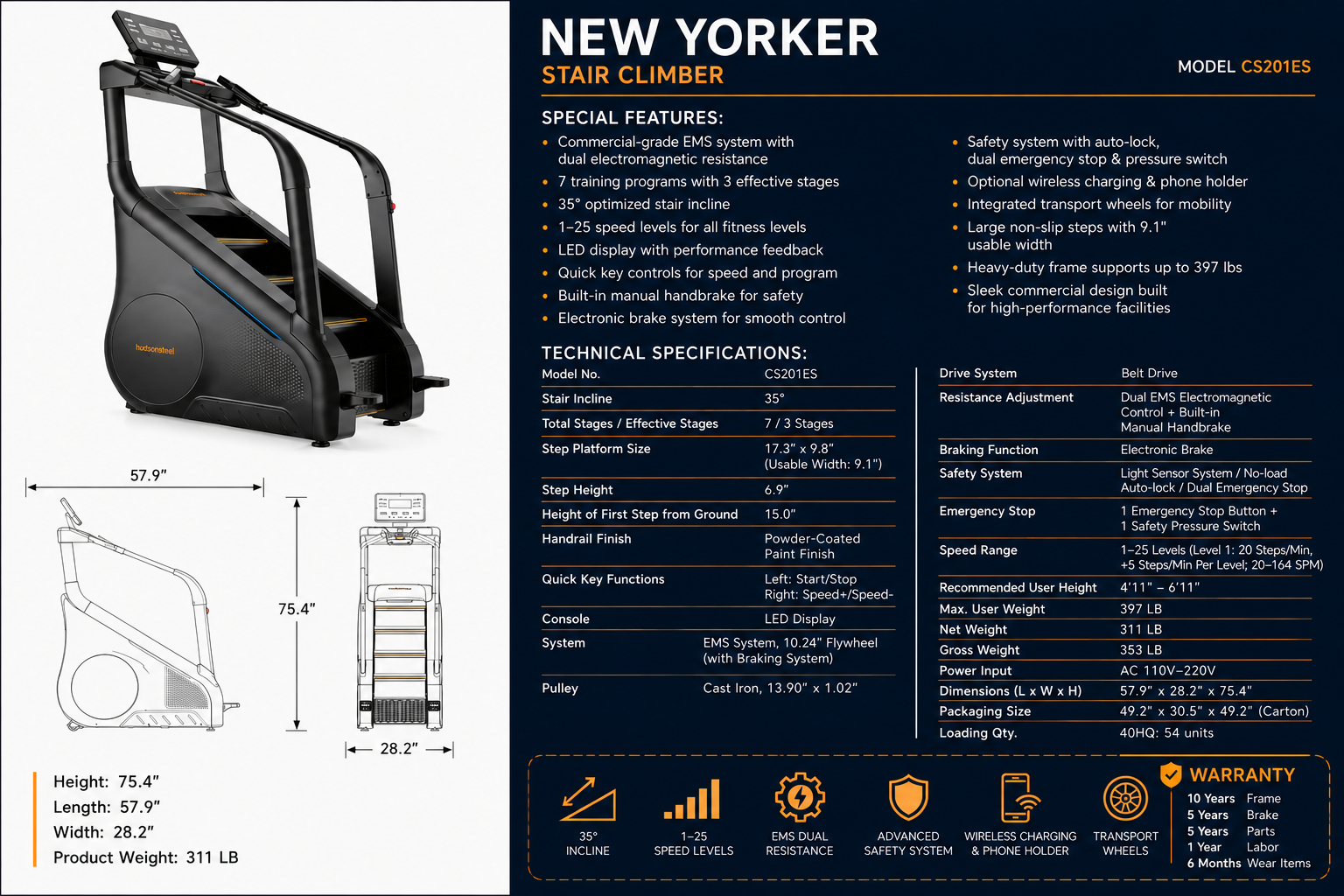

Standard Configuration
Model No.: CS201ES
Display: LED Display
Handrail Surface Material: Spray Paint Finish
Stair Incline: 35°
System: EMS System, Φ260 Flywheel (with Braking System)
Quick Key Functions: Left Handrail: Start / Stop; Right Handrail: Speed+ / Speed-
Total Stages / Effective Stages: 7 / 3 Stages
Pulley: Cast Iron, Φ353×26mm
Step Platform Size: 440×250mm (Actual Usable Contact Width: 230mm)
Emergency Stop: 1 Emergency Stop Button + 1 Safety Pressure Switch
Drive System: Belt Drive
Braking Function: Electronic Brake
Resistance Adjustment: Dual EMS Electromagnetic Control + Built-in Manual Handbrake
Transport Wheels: Φ65×40×10.2mm
Phone Holder: Optional Wireless Charging
Safety System: Light Sensor System / No-load Auto-lock / Dual Emergency Stop
Step Height: 175mm
User Height Range: 150cm - 210cm
Max. User Weight: 180KG
Power Input: AC 110V-220V
Net Weight: 141KG
Gross Weight: 160KG
Auxiliary Pedals (Left/Right): Included (125×100mm L×W)
External Charging: Optional Wireless / Wired Charging
Speed Range: 1-25 Levels (Level 1: 20 Steps/Min, +5 Steps/Min Per Level; 20-164 SPM)
Height of First Step from Ground: 380mm
Height of Fixed Auxiliary Pedal from Ground: 220mm
Dimensions (L×W×H): 1470×716×1915mm
Packaging Size: 1250×775×1250mm (Carton)
